Research in Internet Programming: Developing a Website for the Indiana Senate Information Technology Department

Introduction

The Indiana State Senate Information Technology Department employs many useful
technologies in its service of the Indiana Senate. Throughout the development of this department, the need has arisen to design and implement several new technologies. The project that this report documents is the design of a website of client-specified complexity and functionality to be stored on a server hosted by the Senate IT Department. Outlined below are the specific issues that exhibited the need for this project, the novel solutions that describe the steps that were necessary to complete the project, and a discussion and reflection on the research and discoveries made in the field of internet programming during the implementation of the project.

Chapter 1: Introduction

The Indiana State Senate is the upper member of the two-house legislature that is responsible for drafting, amending, and potentially passing all of the bills that can possibly be signed into state law by the current Governor of Indiana. Throughout this aforementioned process, commonly abbreviated as the "legislative process," there are many meetings, video streams, and IOT devices (such as Bluetooth microphones and sound systems) that require the use of the internet to function in service of Senators and legislative staff. The magnitude and subsequent senatorial reliance on these technologies caused the state to commission a Senate Information Technology Department to oversee and aid in the use and implementation of all technology for the Senate. In their service to the Senate, the Senate IT Department has deemed it necessary to create a website, only available to Senators and legislative staff, that should contain several features and applications that would be made available for the benefit of the Senate.

Chapter 2: Issues that Demonstrate User Needs

Several factors lead the Senate IT Department to the conclusion that there is a need for a new technological solution. The aforementioned solution, designing, developing, and hosting a website accessible to all senate employees, purports to fix the issues outlined below. The first issue is that many members of the Senate staff recruit the help of various different external webpages in the performance of their jobs. Throughout the development and addition of new technology into the workplace, the list of these websites that users might be required to visit has grown substantially large. There exists a need to centralize links to these websites on one webpage, so that each employee does not have to remember them individually.

Another issue that can be addressed is an issue that the website itself presents. Namely that, according to at least one study cited in the references section of this document, staring at a bright webpage for long periods of time can increase the likelihood of developing an ocular disease.1 In light of the danger that a bright webpage can potentially cause to aging employees, the website design can incorporate a toggleable dark-theme mode. Since the website is hosted by the IT department, it would also make sense to add a contact button for any employee who needs to address the IT department.

A final issue that the website design can address, is the issue that all new employees face in trying to navigate the building. The complete group of Senatorial staff inhabits a massive amount of property that encompasses 4 floors each with a multitude of different rooms in the Statehouse. The training process for new legislative assistants and interns that takes place every year involves constantly informing each employee of basic, navigational directions so that they may complete the functions required by their jobs. By hosting an admin-editable floor plan on the proposed website, the employees can have access to a directory that is easily updatable as employees come and go.

The issues that exhibit the need for the creation of such a website are manifold. However, various as they may be, each issue, in hopes of deriving a solution, can be placed into two main categories. The first category, that is responsible for fulfilling most of the client-side needs of the website, is the need for a robust front-end development, powered by the interaction of JavaScript and HTML / CSS, to allow users to make requests for various documents and downloads helpful in the execution of their daily activities. The second category, made possible by the interaction between the languages mentioned above and PHP, is the need for responsive server-side scripting to handle and accommodate the requests made by users.

Chapter 3: Preliminary Solutions

Designing a Homepage

The internet began with html pages that linked to other webpages through hypertext.2 This basic functionality, along with some stock images and basic styling, would seem to be all that is still needed to design a modern homepage. The only issue with this notion, however, is that the Senate IT Department's homepage should link to dozens of distinct webpages.

In order to present an uncluttered and easily navigable menu, a dropdown list must be created through manipulating the CSS style property "display." Each category of links can be fixed to the top right of the page, and then displayed as shown in Figure 1. (Note: the images are simply links to external webpages as well).

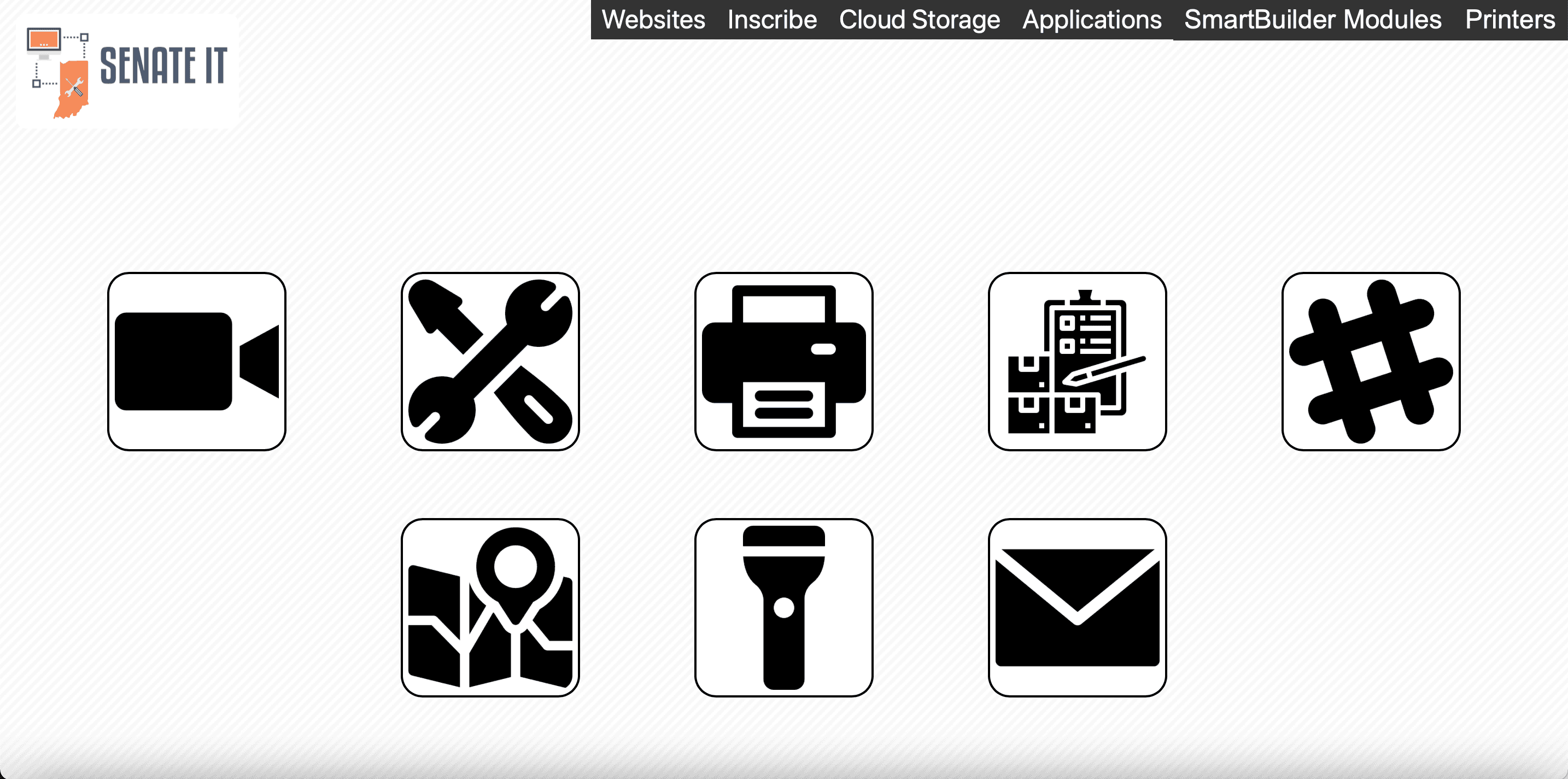

Figure 1: Homepage with Navigation Menu

The catch with this image, is that each list of links belonging to the subcategories of "Websites, Inscribe, etc." has their display property set to "none," by writing "display: none;" in the CSS container for the drop-down content.3 The trick to displaying the drop-down menu is setting the display property to "block" when the appropriate drop-down button is hovered over

by a cursor. For instance, mousing over "Applications" will produce the results shown in Figure 2.

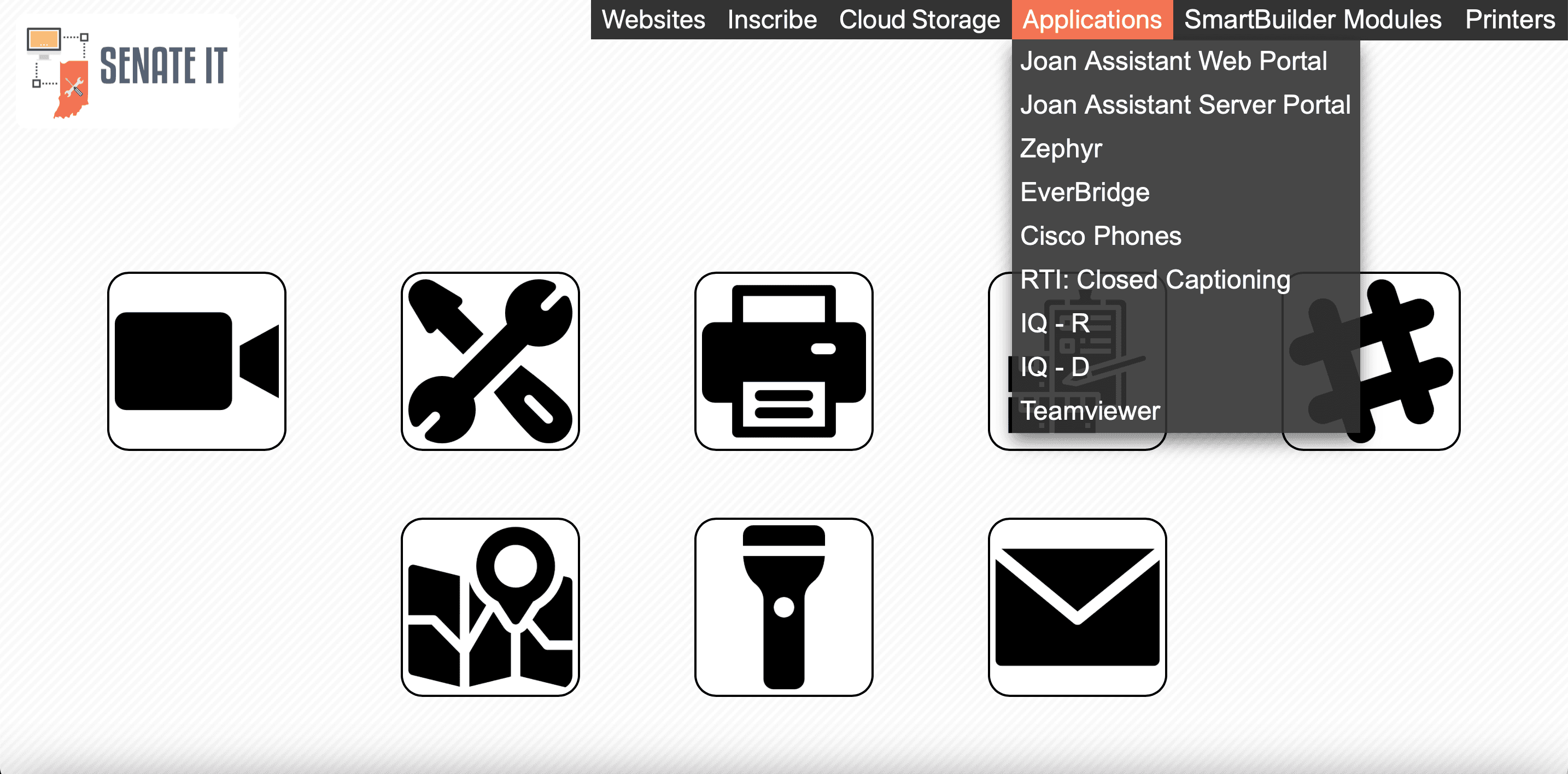

Figure 2: Drop-down Content

Chapter 4: Presentation of Final Solutions

Reconfiguring Design and Adding Buttons for New Applications

The minimalist and nondescriptive design of the homepage in Figures 1 and 2 can easily become confusing for a new user. In order to eliminate potential confusion, the next phase of design involved adding a more descriptive interface between the user and their needed
functionality. This included slightly modifying the style of the webpage along with adding three new buttons that offer distinct privileges to the user (shown in Figure 3).

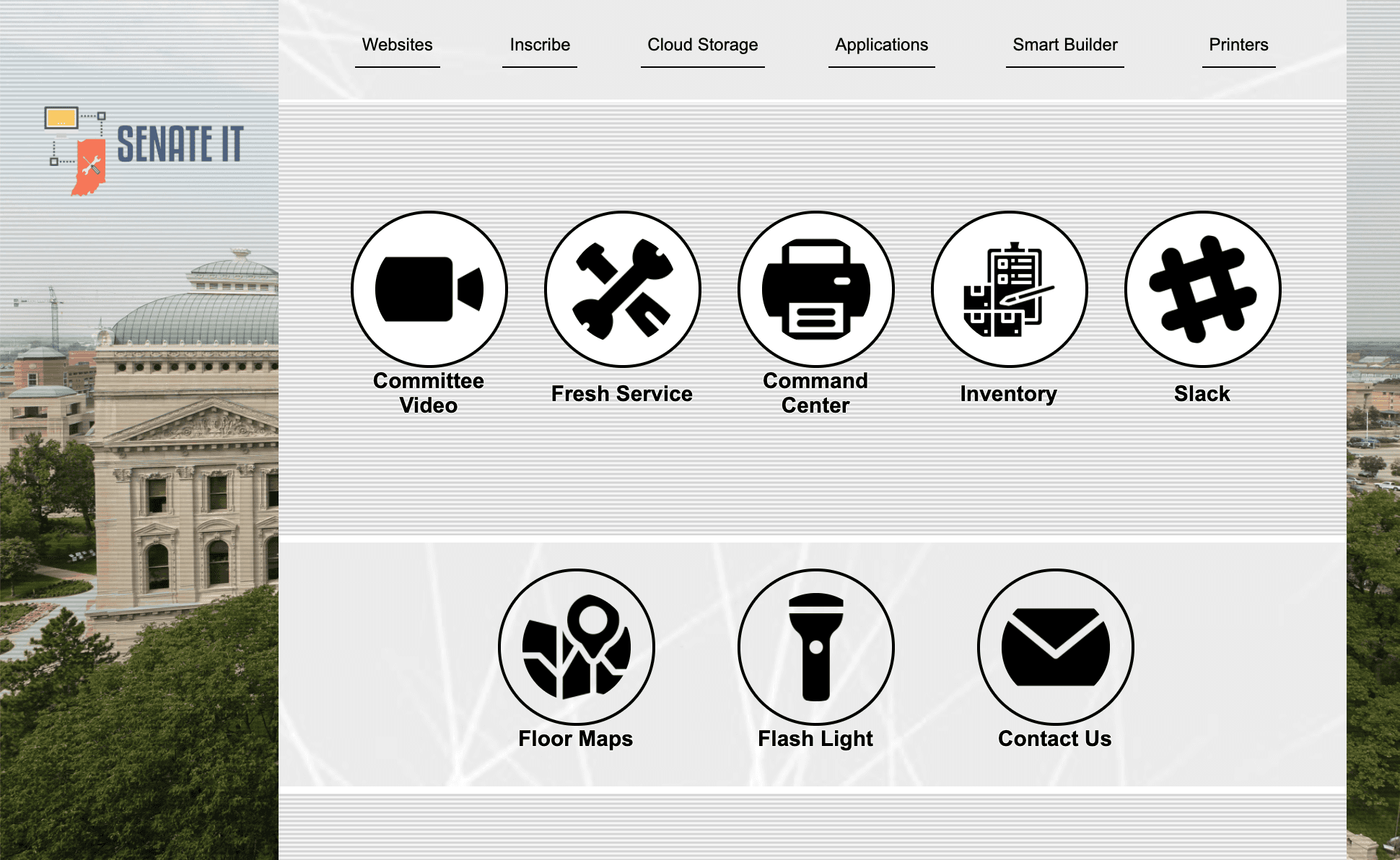

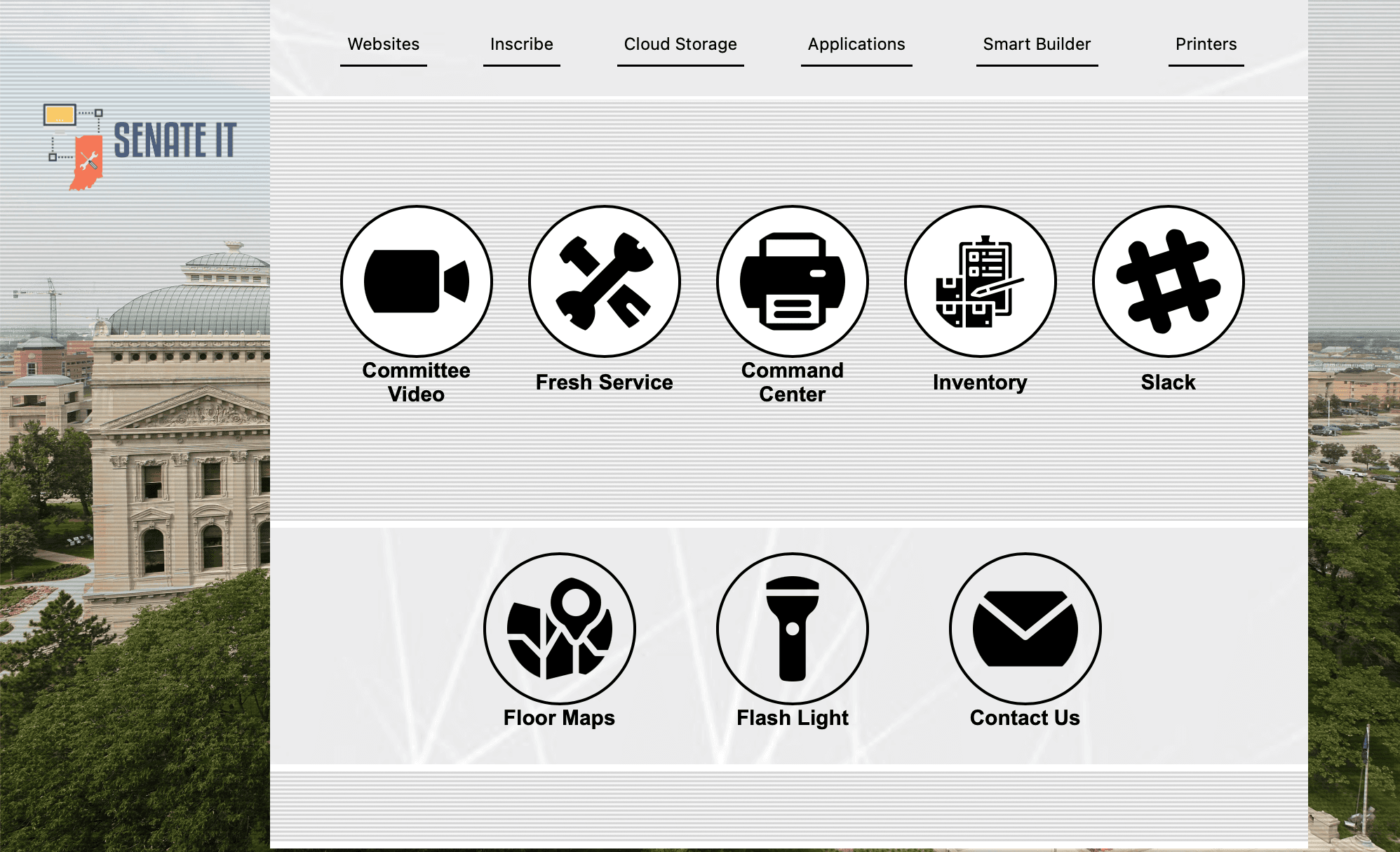

Figure 3: Revised Homepage with Three New Buttons

Each new button, entitled "Floor Maps", "Flash Light", and "Contact Us" respectively, offers new functionality. The Floor Maps button links to a page, "floorplan.php" that is further

outlined in the "Creating an Admin-Editable Floor Map" section below. The Flash Light button, has an onclick attribute that calls a JavaScript function, "toggleLightDark()," that is further explained in its corresponding section below. The Contact Us button, by way of a
"[mailto:senateit@iga.in.gov]{.underline}" reference, opens the users default mail application with a draft destination set to the Senate IT Department's helpdesk email.

Adding a Toggleable Dark-theme

Several potential solutions were ideated during this phase of the design. It is possible to create a completely new webpage, perhaps titled something like "homepage-dark.html" with different, darker CSS styling, and to link this webpage to the flashlight button on the light homepage and vice versa. However, while this is possible, it has no mechanism to remember the user's preference of theme. This is a significant drawback, because it is hard to imagine that any user would be willing to use a different theme if they had to select that theme every time they used the page. Furthermore, the theme would need to persist across multiple different webpages, which would be impossible by simply using a different file. This problem, the problem of needing to remember the user's preference of theme, resulted in long periods of study that eventually lead to the consideration of JavaScript Cookies.

JavaScript Cookies exist to allow the storage of user-specific data in small text files on the client-side user's computer. Furthermore, the data is stored in name-value pairs, such as "theme=light" or "theme=dark" in this case. Cookies solved the problem of remembering the state of a user's theme preference, however, the problem of actually updating the style of the website without reloading the page still remained.

After adding a simple alternative color scheme such as "background-color: #000;" in the style of a copy of the body tag titled "dark-theme", it then became necessary to add a toggle switch between each theme. Therefore, each time the Flash Light button is pressed, a series of JavaScript functions are called that do two different, but necessary, things. First, the style currently being rendered on the DOM is switched to the alternative style. Second, a cookie is set with the user's preference, whether that preference be "theme=light", or "theme=dark."

Finally, once the problem of setting the theme was solved, there emerged another need in the design of the theme switcher. The problem was that the webpage was not checking for which theme to display on startup. This problem was easily solved by adding a call to another
JavaScript function enclosed in a script tag placed at the end of the body tag of the document.4 The function call, "readCookieAndSetTheme()", simply checks the cookies to see what theme the user prefers and then displays that theme's corresponding style. Figure 4 illustrates the final result on the homepage (Note: see the light-dark mode difference between other pages in the appendix).

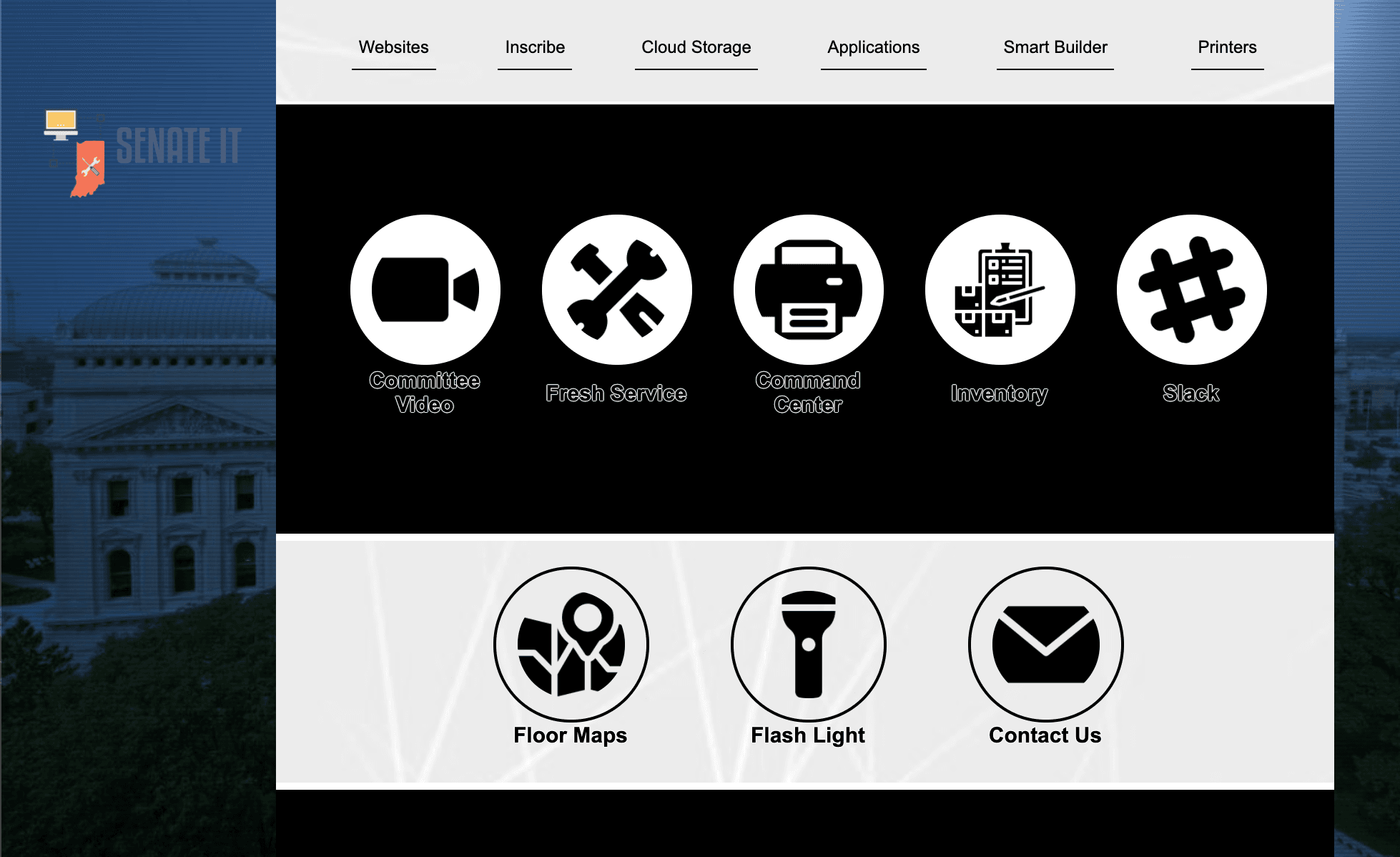

Figure 4: Light-mode Figure 5: Dark-mode

Creating an Admin-Editable Floor Map

Due to the size of the Statehouse, all new senate employees, unless otherwise familiar with the building, are required to undergo a lengthy process in order to learn how to navigate the building they work in. Due to the significant turnover of Senate interns and employees, this process is repeated many times throughout each annual legislative session. Designing a floor plan, that is editable by the Senate IT Department staff, would greatly reduce the time cost

required to train new employees, thereby increasing the efficiency in which new employees can be trained.5
The Senate has, prior to the development of this website, created floor plans using the Microsoft Office 365 software Visio. Visio drawings are saved with the specific file extension ".vsdx" (for example, a file named "drawing" would have the file name "drawing.vsdx").6 These drawings contain the data that needs to be displayed on the website. Unfortunately, the Visio file type does not allow these drawings to be displayed on webpages without the use of Sharepoint.7 Instead, the Visio file must be saved as an image, and then displayed in a manner similar to Figure 6.

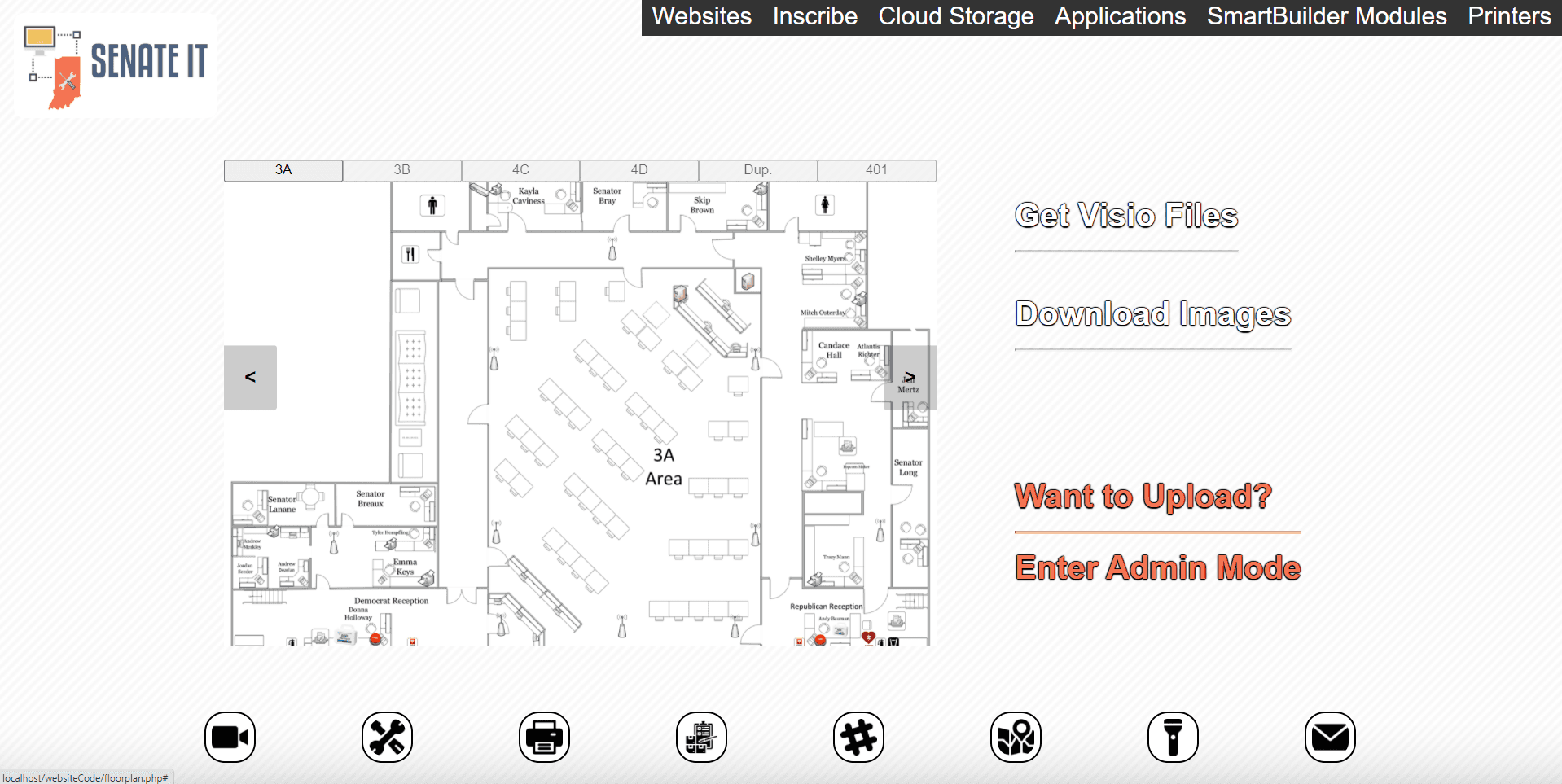

Figure 6: The Floor Plan

The fact that the Visio file is displayed as an image presents an obvious problem as it is not easily editable through the browser as a Visio drawing is editable in Visio. The way to get

around this problem, however, is simple. When the IT staff wants to update the floorplan as displayed on the website, they must download the current Visio drawing, update it through the Visio application, and then save the file they want to display with the appropriate room number followed by the ".png" extension. Once this file is saved, they can choose to upload it to the server by logging into administrative mode. The administrator is able to login by clicking the "Enter Admin Mode" text highlighted in orange in Figure 6. Once this text is clicked, a login window is displayed as shown below in Figure 7.

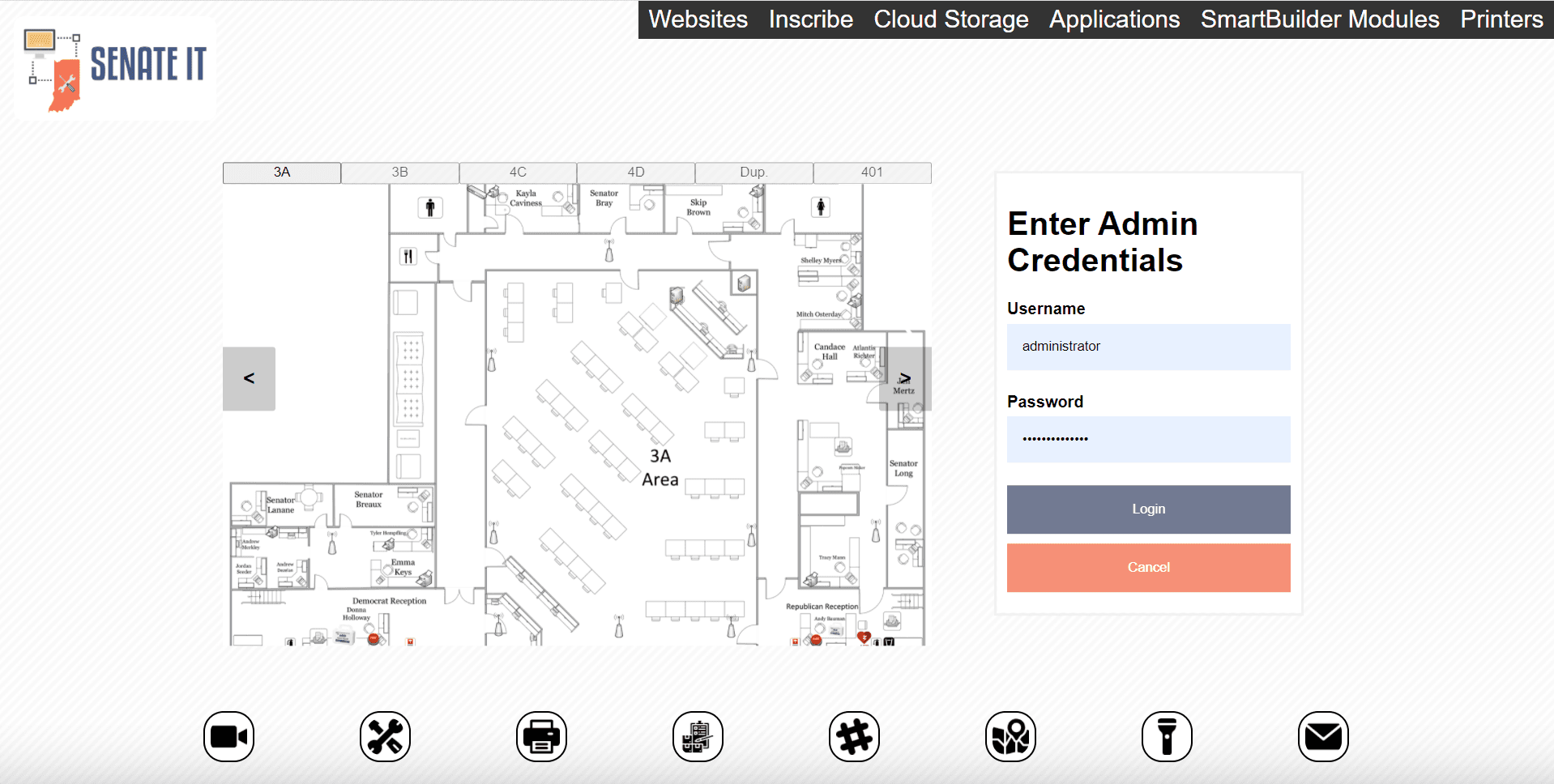

Figure 7: Login Window for Administrator Mode

If their login is validated by the server-side PHP, then they'll have the option to upload either a Visio file (to update the Visio drawing hosted on the backend) or an appropriately named image (to update what is displayed on the website). To advance to upload, they can click the upload button shown in Figure 8. Clicking this Upload button will open up a submission window (shown in Figure 9) that has specific instructions for submission.

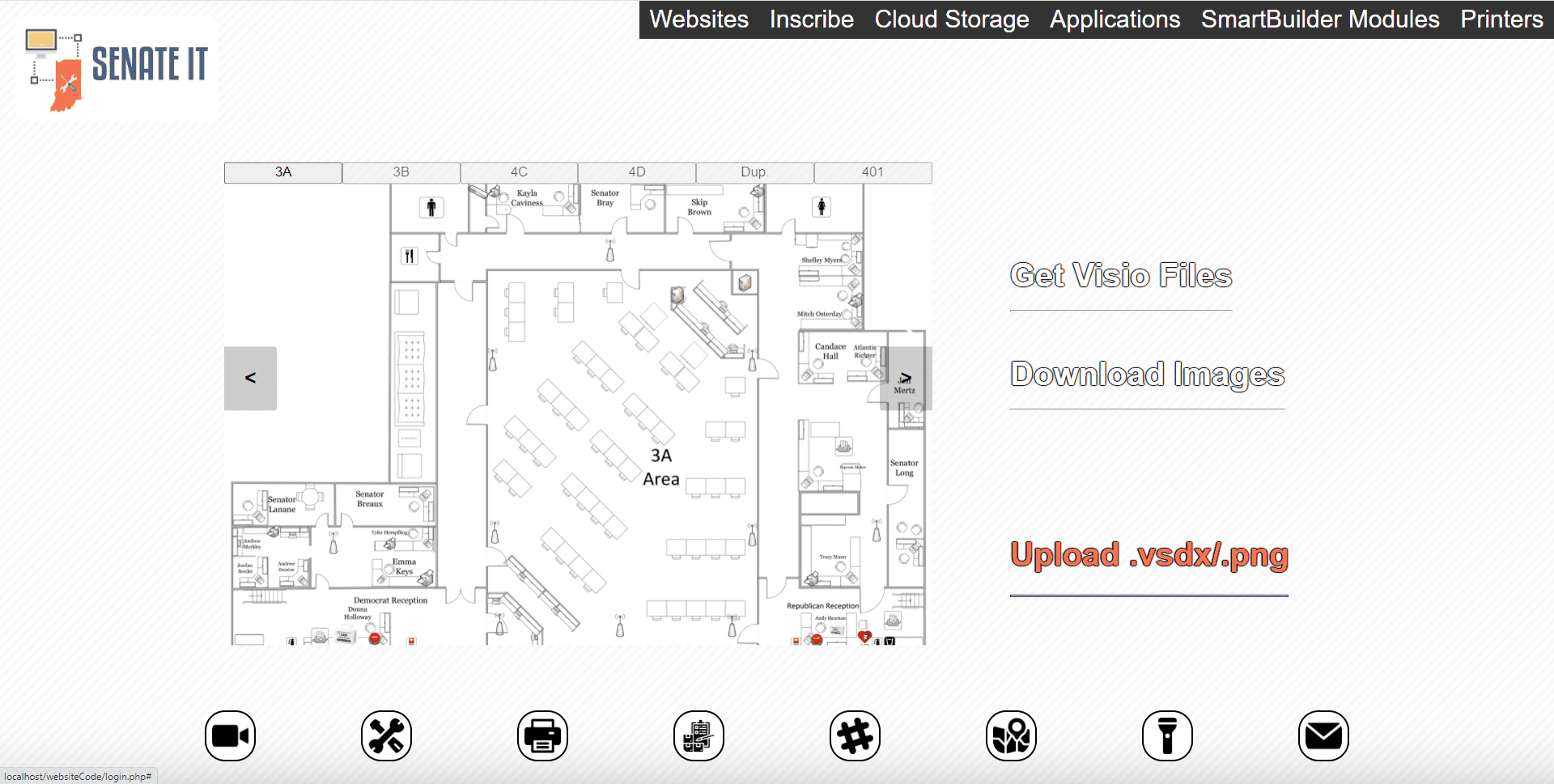

Figure 8: Administrator Mode View

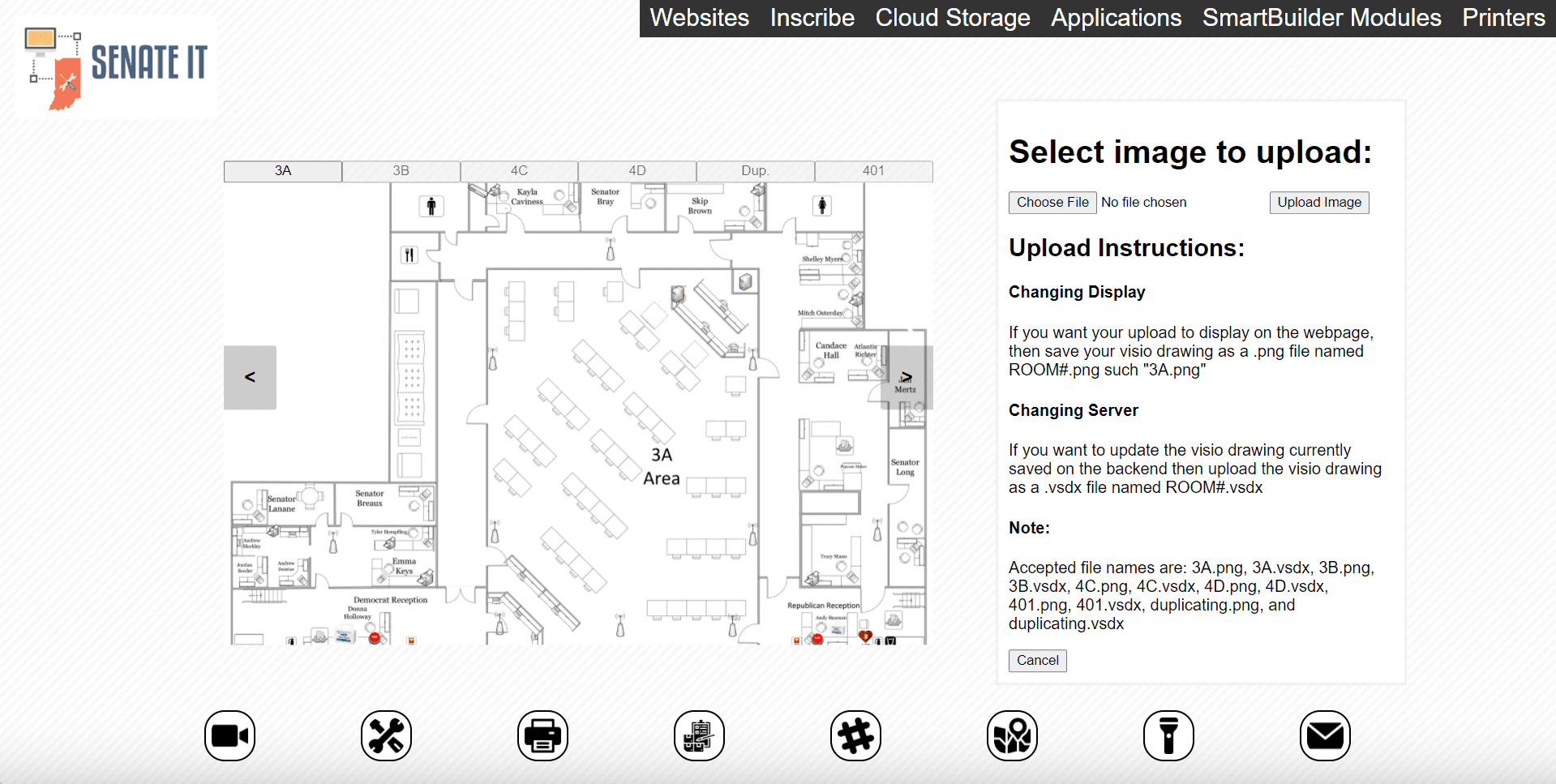

Figure 9: Administrator Mode with Submission Window

Once a file is selected, the user can upload, which inputs a form that is then handled by a separate php file to determine if the upload is safe and contains the appropriate data. If the file passes the tests, then the file that the administrator is choosing to upload overwrites the current corresponding file hosted locally in either the "images" or "visio" folder of the website directory.

Once this overwrite takes the place, the "upload.php "file will echo affirmation to the user, letting them know that their download was processed. Upon refresh, the changes can be seen on the screen as shown in Figures 10 and 11.

Figure 10: The Floor Plan with Initial 3A.png File

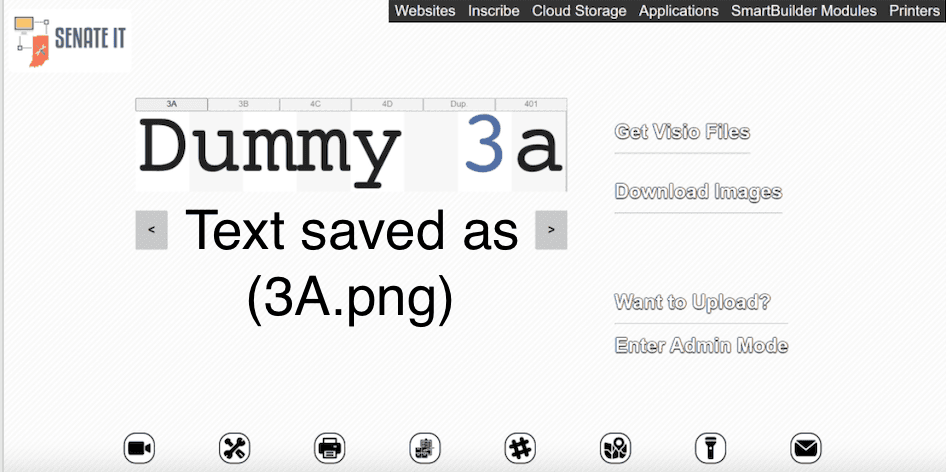

Figure 11: The Floor Plan after Upload

Note that the floorplan page is not just saved on the client-side, but the files being used to display the website have been changed. Administrator mode is a solution that allows a qualified individual to update the floor map from any remote machine in the building. In short, the users are capable of downloading whatever file they want from the floor plan page, including Visio drawings and images, but they are not allowed to access administrative mode without entering the appropriate credentials of an IT staff member. The IT staff, however, can easily update the website from anywhere in the building without having to write a single line of code.

Conclusion

This website design not only fulfills several employee needs presented by the current structure of the Senate, but it also delves into the field of internet programming to discover new methods of client-server interaction. Through the structure of an easily navigable dropdown menu, it lends itself to the service of Senatorial staff in need of a centralized hub of information. Through the use of JavaScript cookies, the website commits to client-memory the design preference of any number of users. Finally, through the novel implementation of administrator mode, the client is able to update the website to accommodate for the often-changing nature of the Senate. As demonstrated through various aforementioned examples, the deployment of this website at the Senate leads to greater effectiveness in completing individual employee tasks as well as more efficient training resources for new employees.
